The best ways to IPhone 5S Boot with White Apple

When you update the iphone 5s device, your device stays on the Apple logo and does not work properly. So how to get rid of this bad situation quickly? In this article, we give you some tips that you can easily follow and try. vipprogrammer-help you fix iphone5s boot card in Apple logo problem.

For example

Today we'll repair an iPhone5S, the customer reflects the failure is the nut was wrong installed when replacing the screen, may be the motherboard layer was broken down, which causes the device to reboot with white apple. After testing, the symptom is exactly same as the customer description. As shown in picture 7-9-1. How to fix this fault step by step?

1. First, power off the device and remove the motherboard, we can see the screw  column is damaged when observing with the microscope, there are traces of being pierced. As shown in picture 7-9-2 and 7-9-3.


2. Continue to scrape the motherboard layer, there are four wires were interrupted. As shown in picture 7-9-4.

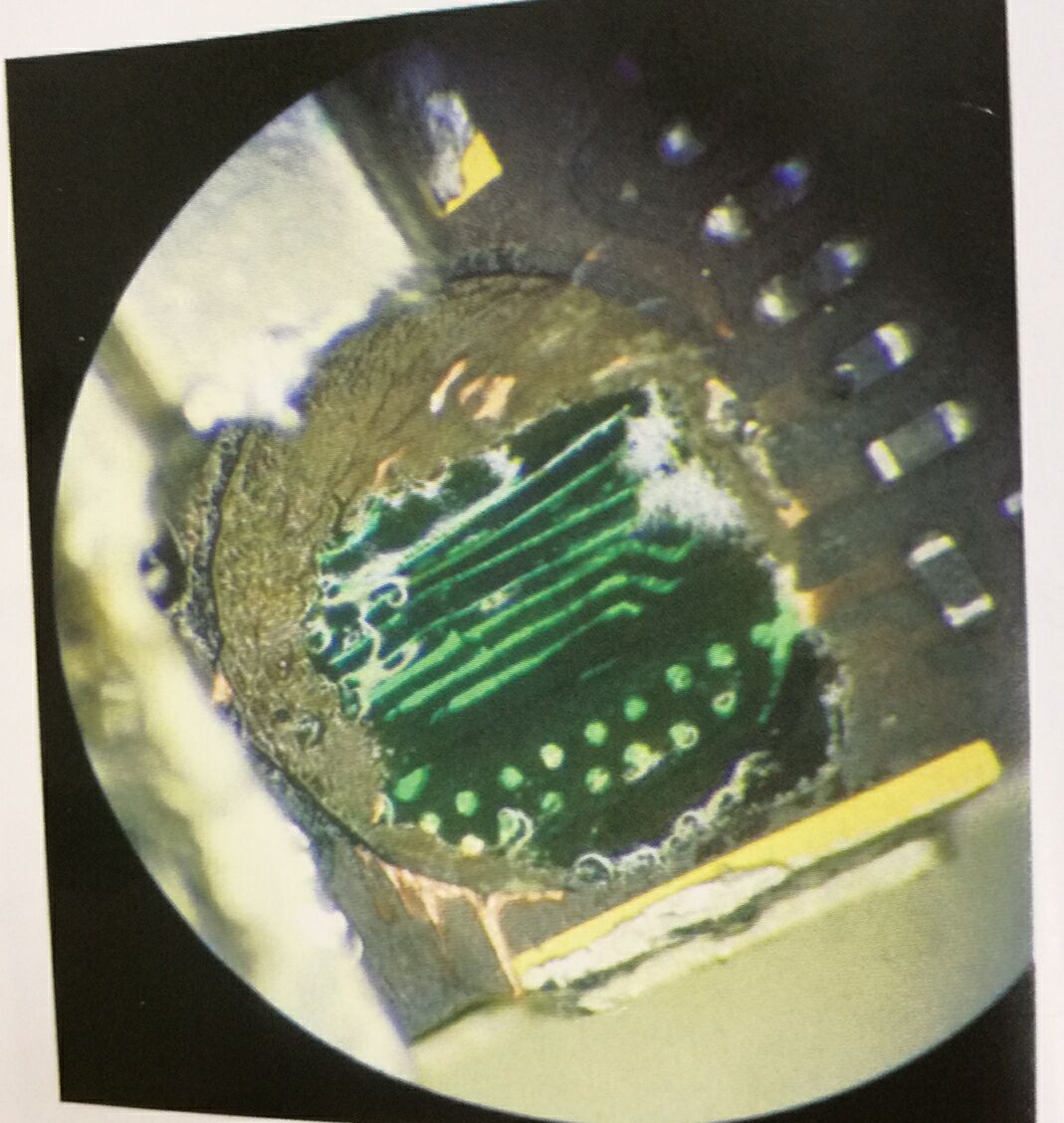

3. So we connect the broken wires one by one, and then make green oil\solidification. As shown in picture 7-9-5.

4. Power on to test, it still reboot with the same symptom, replace U6 and U2 chip, fault is still as before, and the iPhone device reports error 9 at the last, as shown in picture 7-9-6.

5. Finally, we remove the iPhone 5s NAND Flash and reball it again with corresponding reballing stencil.

After that, the device can be rebooted properly, the fault is solved successfully.
